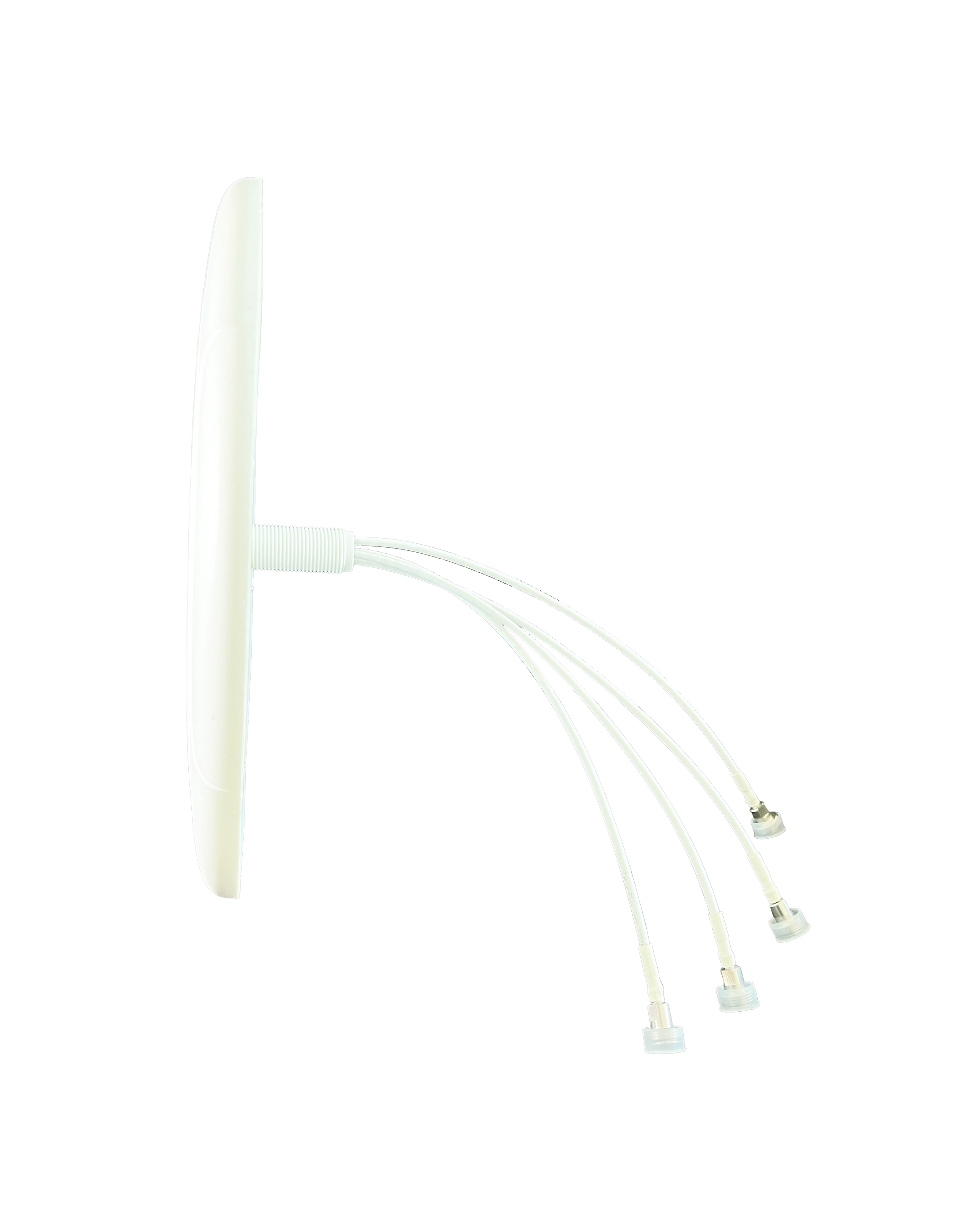

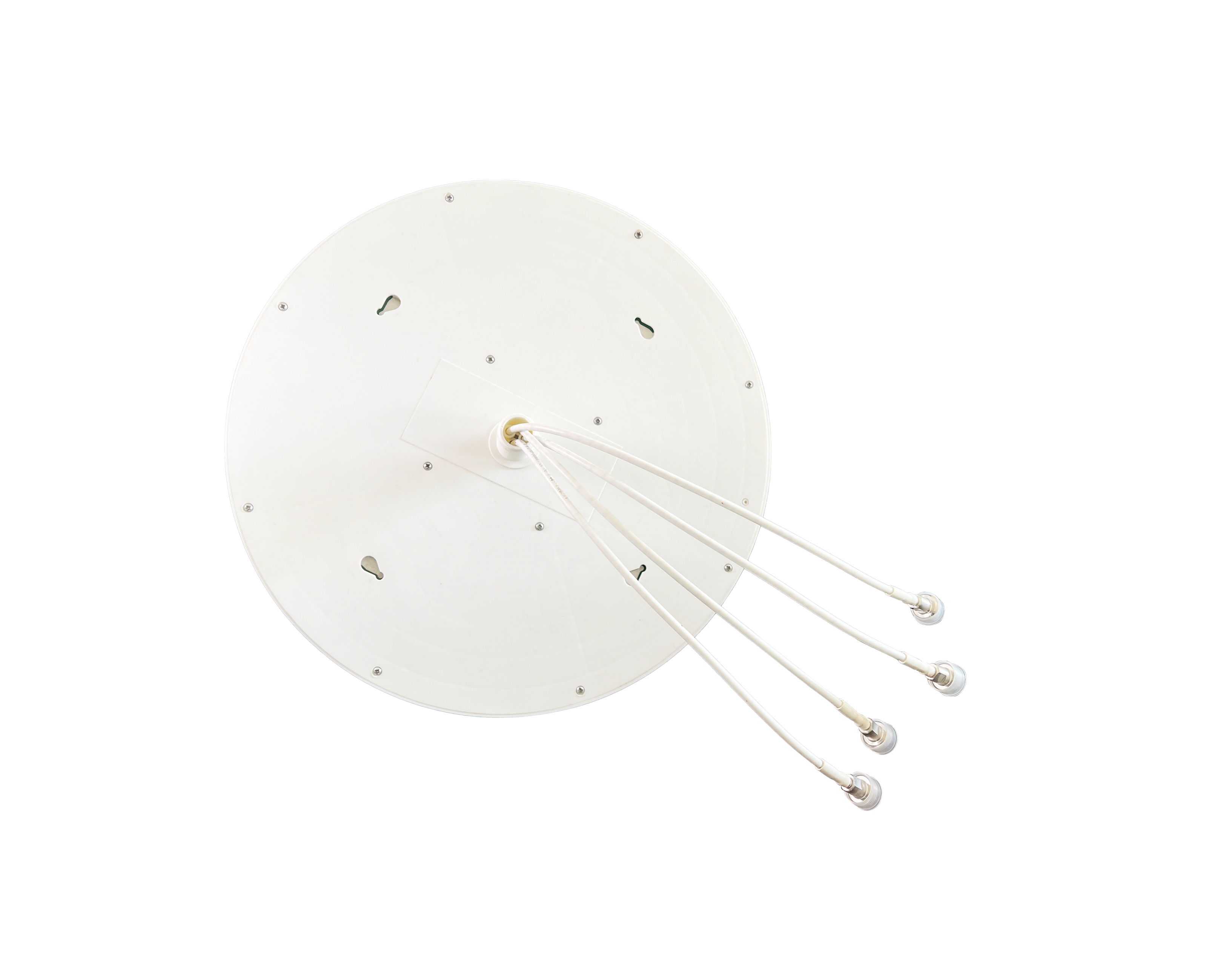

Omnidirectional four-port ceiling antenna
Unit:SET
Size:DSPXD617-6000H4-20W-6i-N-F
Price:Market Price
Price Clause:FOB
| DSPXD617-6000H2-20W-6i-N-F | ||||
| Electrical specifications | ||||
| Frequency range (MHz) | 617-960 | 1710-2700 | 3300-4000 | 4900-6000 |
| Polarization | Linear(Horizontal) x 4 | |||
| Gain(dBi) | 2.2 | 4.5 | 5.5 | 6.0 |
| Horizontal beam-width(°) | 360 | |||
| 3dB Vertical beam-width(°) | 105 | 40 | 40 | 30 |
| VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Isolation(dB) | ≥16 | ≥20 | ≥23 | ≥23 |
| Intermodulation IM3(dBc) | ≤-150dBc(@2*43dBm) | |||
| Impedance(Ω) | 50 | |||
| Maximum input power(W) | 50 | |||
| Mechanical specifications | |
| Connector | 4×N-Female |
| Connector position | Bottom |
| Size(mm) | Φ360×18 |
| weight(kg) | 0.96 |
| Radome material | ABS |
| Radome color | White |
| Operating temperature(℃) | -40～65 |
| Mounting Kit | Ceiling, via hole |
| *This product is not suitable for installation on metal ceiling | |
