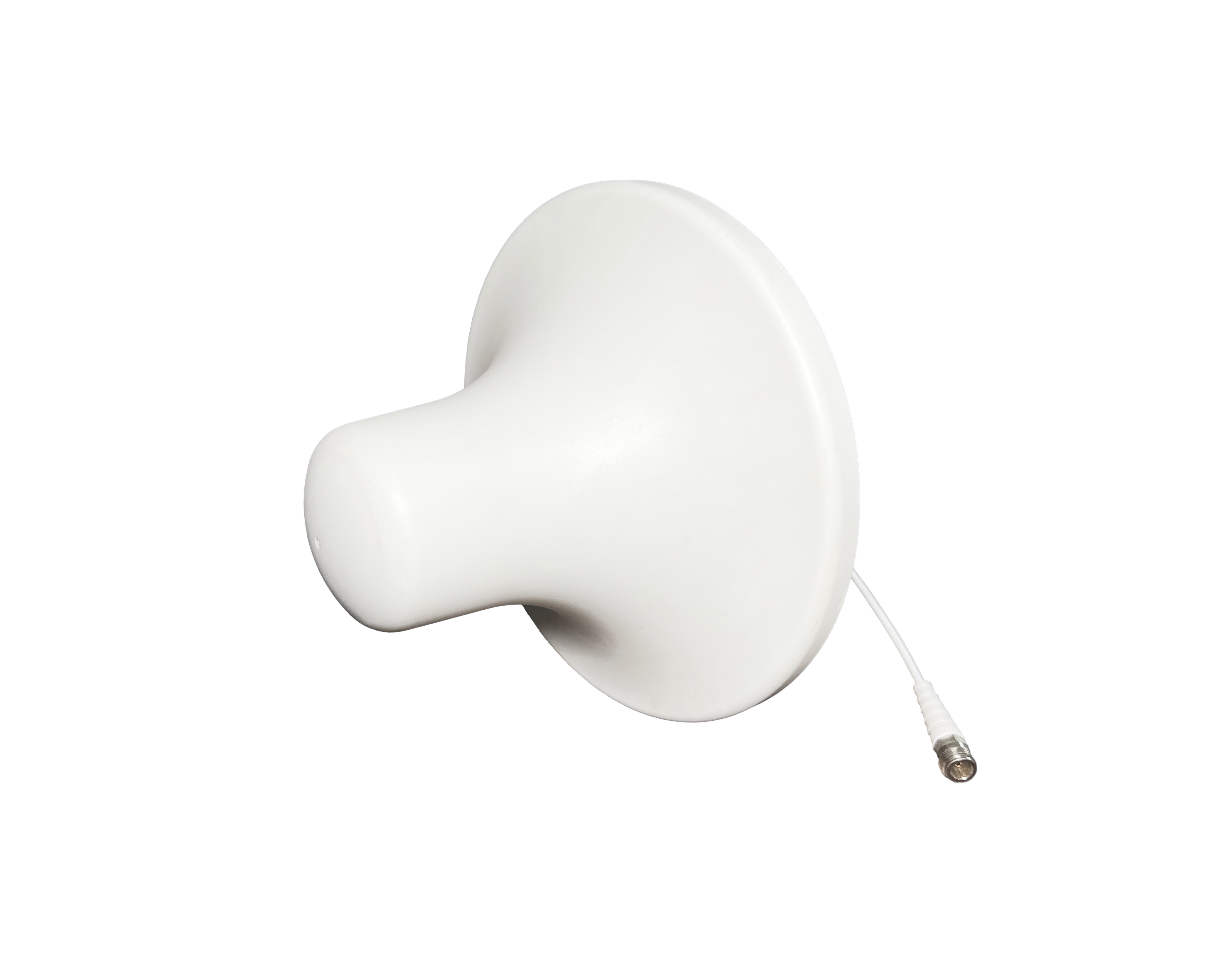

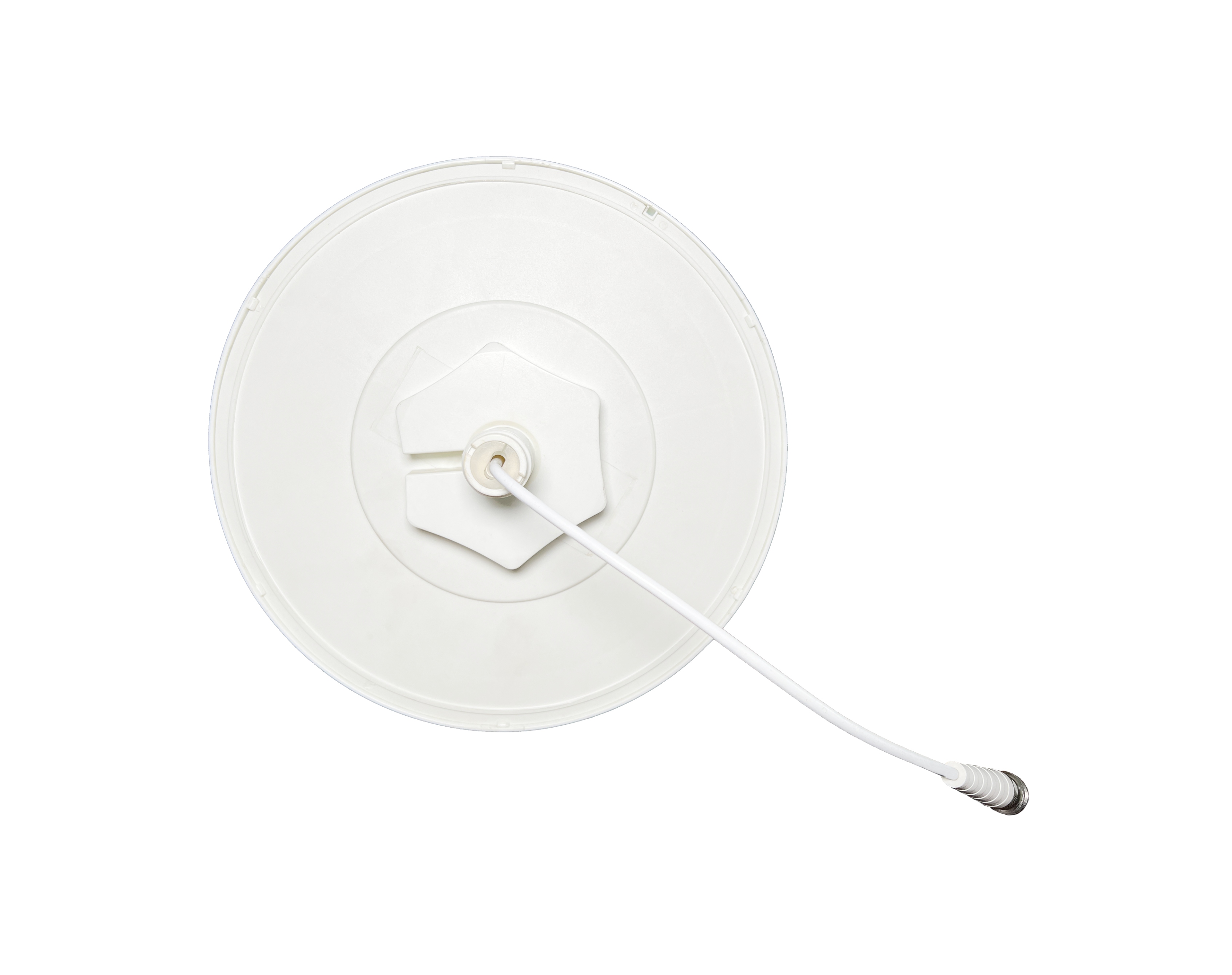

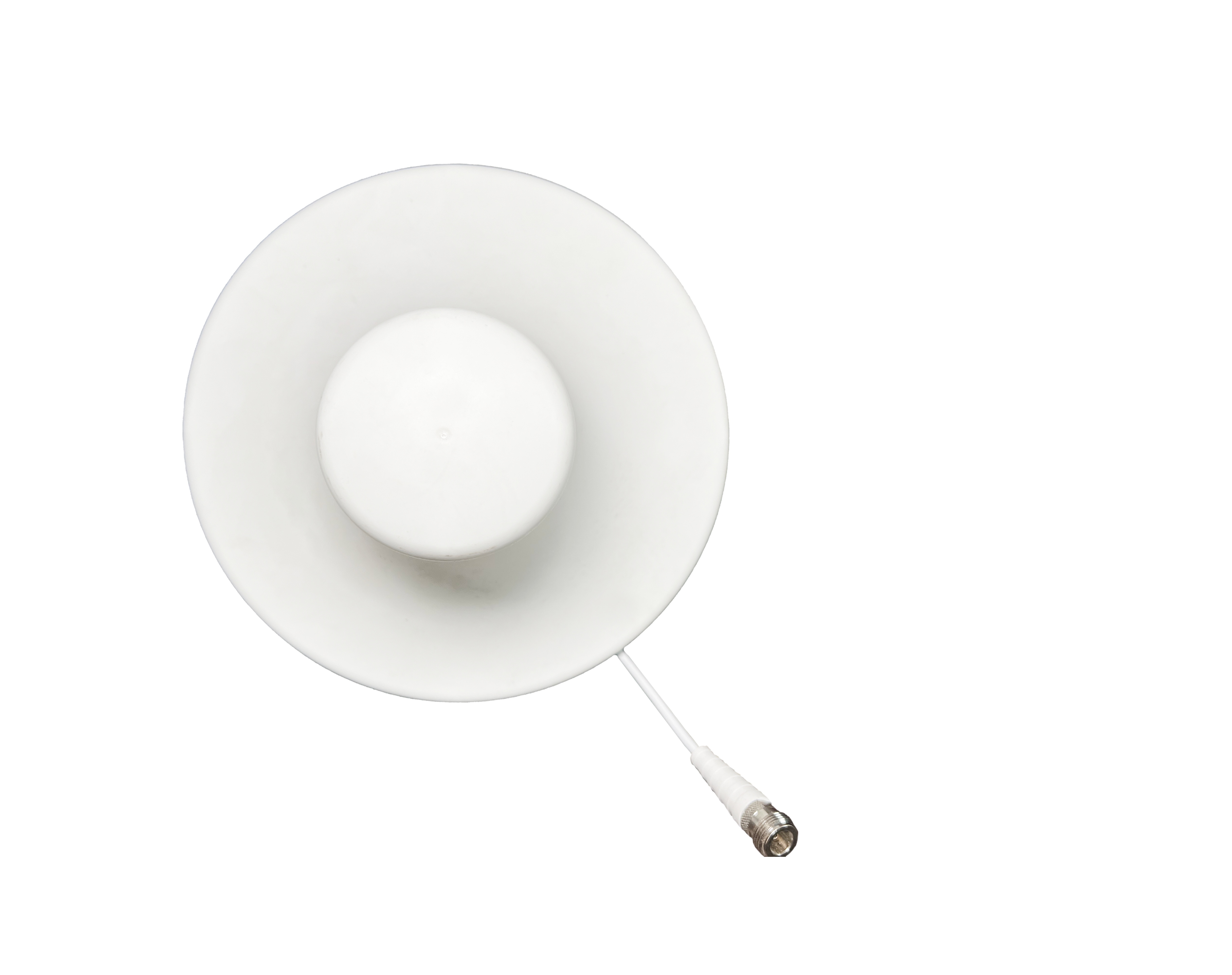

Omnidirectional single-port ceiling antenna
Unit:SET
Size:DSPXD617-6000V-20W-5i-N-F
Price:Market Price
Price Clause:FOB
| DSPXD617-6000V-20W-5i-N-F | ||||
| Electrical specifications | ||||
| Frequency range (MHz) | 617-960 | 1710-2700 | 3300-4000 | 4900-6000 |
| Polarization | Vertical | |||
| Gain(dBi) | 2 | 3 | 4 | 4.5 |
| Horizontal beam-width(°) | 360 | |||
| 3dB Vertical beam-width(°) | 85 | 35 | 30 | 28 |
| VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Intermodulation IM3(dBc) | ≤-150dBc(@2*43dBm) | |||
| Impedance(Ω) | 50 | |||
| Maximum input power(W) | 50 | |||
| Mechanical specifications | |
| Connector | 1×N-Female |
| Connector position | Bottom |
| Size(mm) | Φ230×150 |
| weight(kg) | 0.45 |
| Radome material | ABS |
| Radome color | White |
| Operating temperature(℃) | -40～65 |
| Mounting Kit | Ceiling, via hole |
