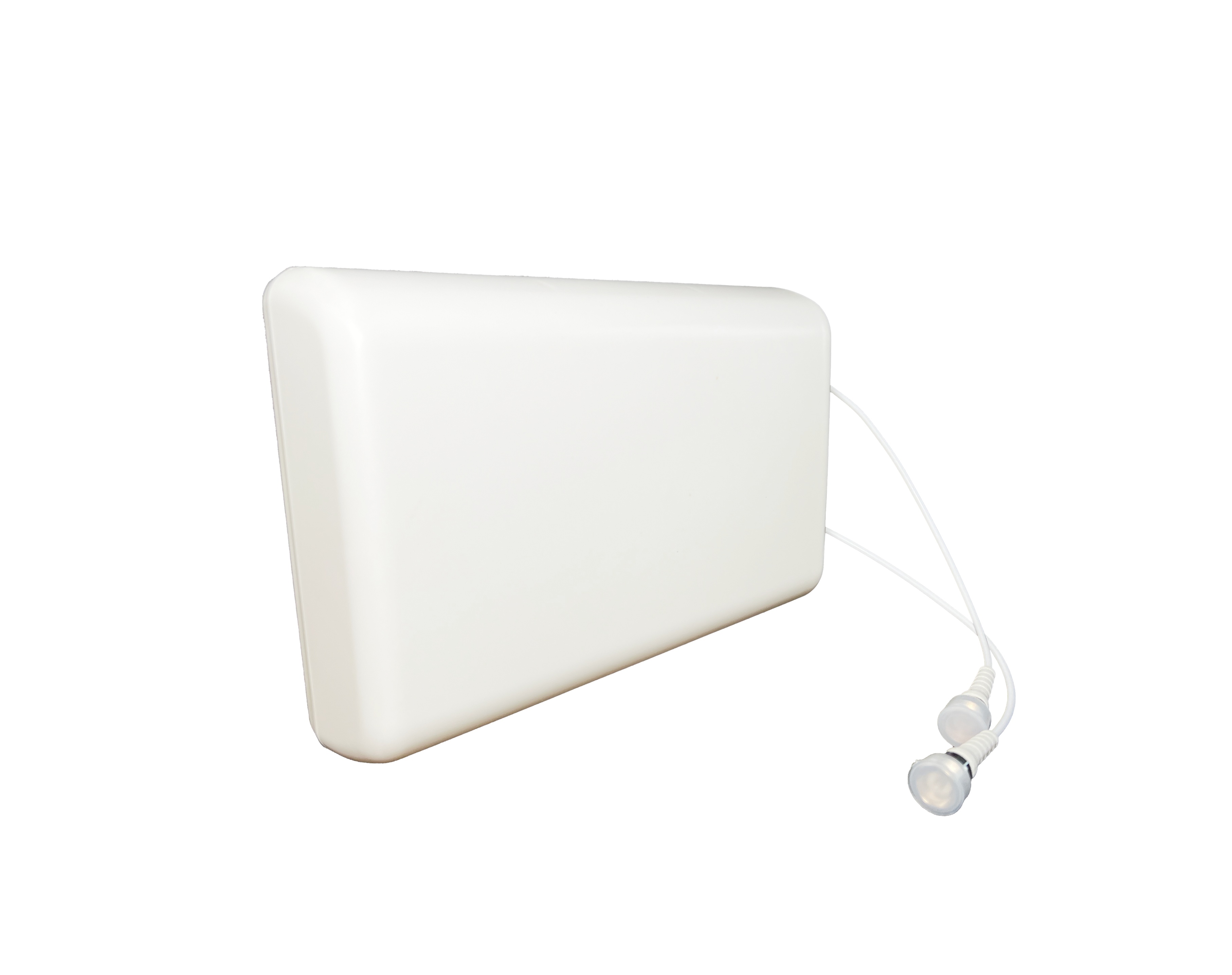

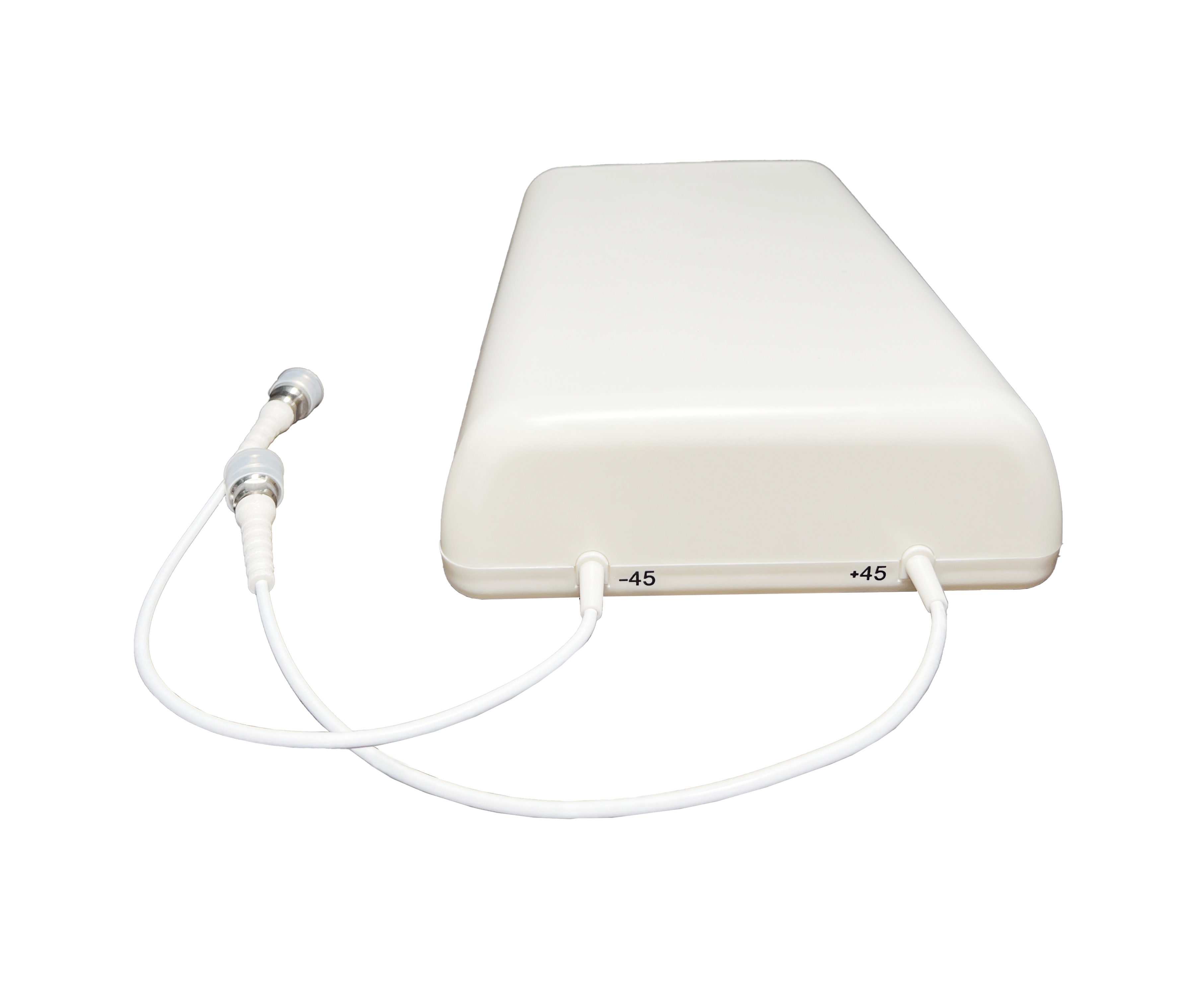

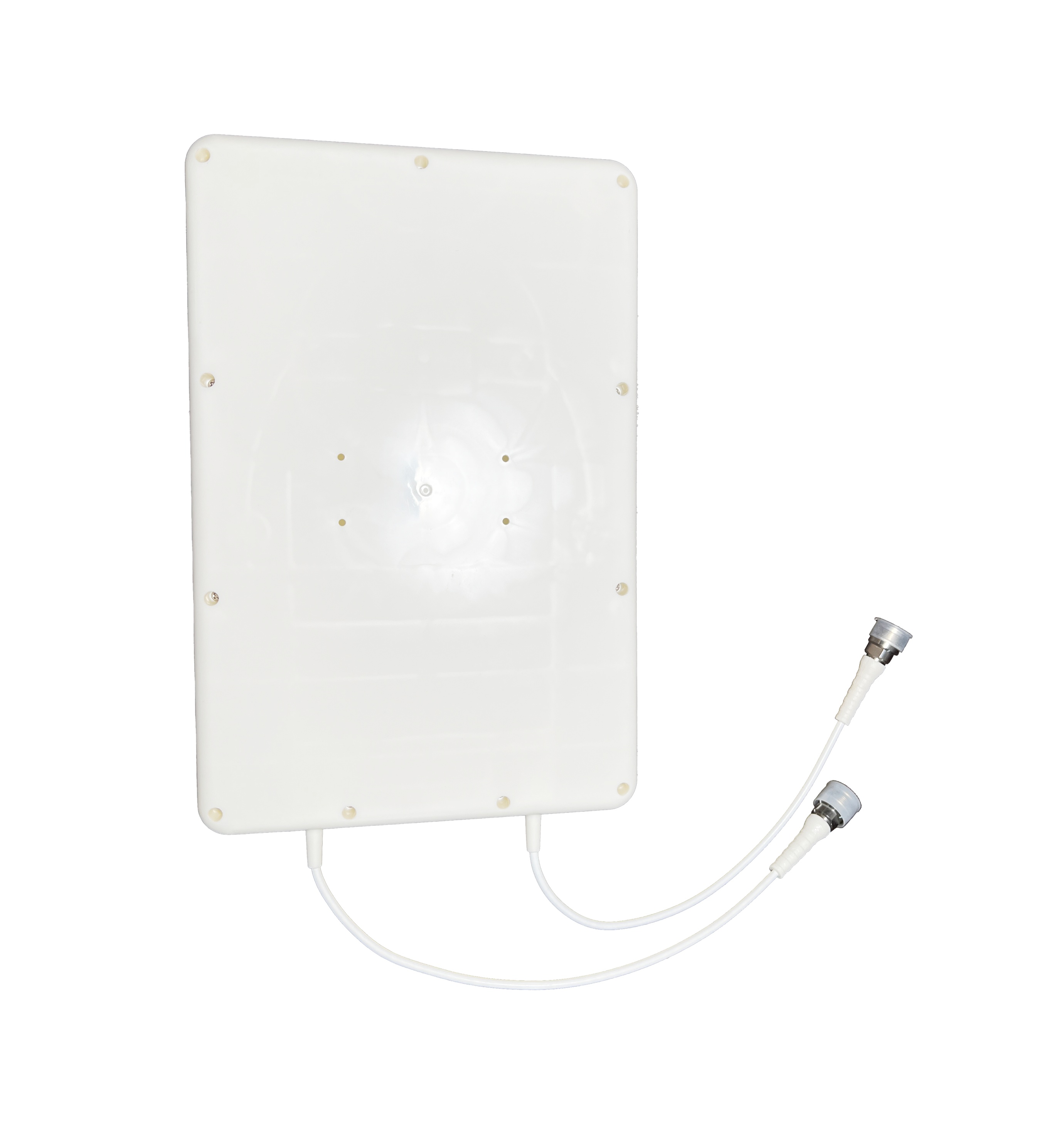

Directional two-port wall-mounted antenna
Unit:SET
Size:DSPBG698-2700X-7i-80-4310-1
Price:Market Price
Price Clause:FOB
Indoor Wide band Panel Antenna , coverage 698 - 2700MHz，MIMO
| Model | DSPBG698-2700X-7i-80-4310-1 | |
| Electrical specifications | ||
| Frequency range (MHz) | 698-960 | 1710-2700 |
| Polarization | ±45° | |
| Gain(dBi) | 7 | 7 |
| Horizontal half-power beam width (°) | 80±20 | |
| Vertical half-power beam width(°) | 70 | 60 |
| Front-To-Back Ratio | ≥15 | |
| Isolation (dB) | 10 | |
| VSWR | ≤1.8 | |
| PIM, 3rd Order (dBc) | ≤-150 (2 × 43 dBm carrier) | |
| Impedance(Ω) | 50 | |
| Maximum input power(W) | 50 | |
| Lightning protection | DC ground | |
| Mechanical specifications | ||
| Connector | 2 × 4.3-10 Female | |
| Dimensions (H x W x D) (mm) | 300×250×100 | |
| Net weight (with installation kit) (kg) | ≤1.8 | |
| Application scen | Indoor | |
| Radome materia | UV ABS | |
| Operating temperature (℃) | -40 to +55 | |
| Mounting Kit | On-wall | |
Installation Steps
1. Screw the antenna with installation board to the installation board on the wall.
2. Connect the cable to the antenna connecter and tighten it.
