Power range

Three-input single-output 10kVA-20kVA

Application field

Enterprise local area networks, data center computer rooms high -end commercial servers, electronic medical equipment government,communication, agents, distributors, channel retail and other fields.

Performance characteristics

Super-strong adaptability to the power grid environment

with an ultra-wide input voltage range, it can supply power normally even in remote areas with extremely harsh power environments,reducing the number of battery discharges and extending the battery life.

Friendly human-machine interface

The LCD display panel clearly shows the operating status, load status,battery status, etc. of the UPS, enabling users to keep track of the Ups operating status and changes in the application environment at any time.

Power-on self-diagnosis function

When powered on and started, the Ups begins to self-check the key working circuits to detect problems in a timely manner and avoid any losses.

Automatic input power factor correction function

Using digitally controlled active power factor correction technology, the input power factor can reach over 0.99, to cope with the pollution of the power grid environment, reduce the front-end configuration cost of the UPS, and lower thecustomer sinvest ment cost.

50/60Hz frequency self-adaptive function

The frequency automatically tracks to adapt to 50Hz/60Hz power systems, meeting the requirements of global power systems.

Compatible with generator input

With a wide input voltage and frequency range, it better solves the generator configuration problem and provides clean, safe and stable power for the load.

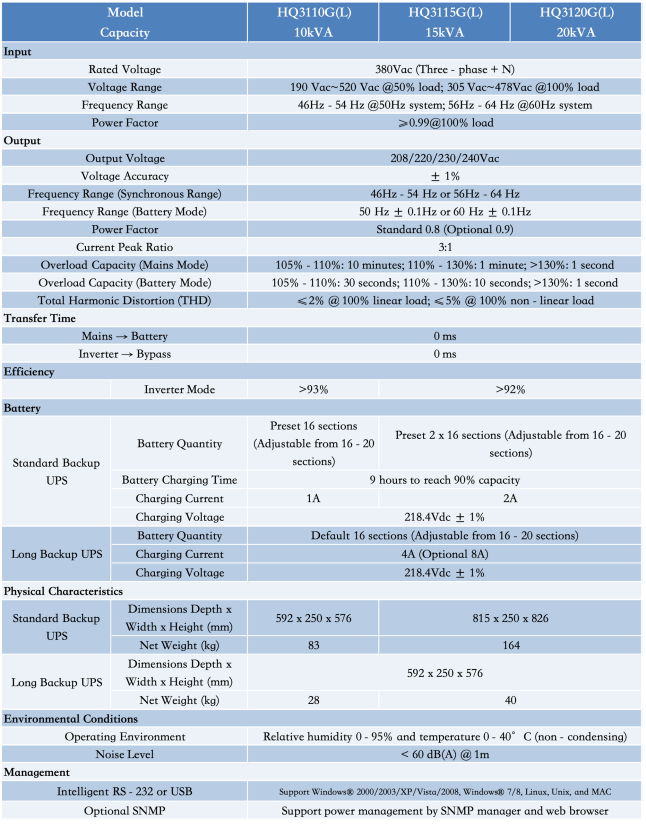

Performance Metrics

*When in the frequency conversion mode, the output power is derated to 80%; when the output voltage is set to 200Vac or 208Vac, the output power will be derated to 80%.*The actual product shall prevail, Specifications are subject to change without prior notice
